LANIER Pro C9200/C9210

Graphic Arts Edition

Remove barriers from your business

Transform and deliver your information with increased agility and more personalization that will fit your budget. With the affordable Lanier Pro C9100 Color Production Printer, you can take on high-speed digital production at speeds of up to 110 pages per minute (ppm), for near-offset quality. Add variable data and a wider range of media options for large or small print runs. Plus, capture new business by switching from your existing offset press or underpowered digital print system.

Graphic communications that exceed customer expectations

Produce distinctive jobs on an array of media. Use up to 470 gsm for projects up to 19.2″ and for larger sheets up to 49.6″ simplex and 40.5″ duplex. Deliver collateral, posters, specialty items like certificates, carbonless forms, catalogs and more. Variable data processing capability multiplies your application opportunities.

Captivate with compelling color and clarity

Engineered to deliver bold, crisp images and quality you can depend on page after page:

  • 2400 x 4800 dpi resolution

  • Innovative Vertical Cavity Surface Emitting Laser (VCSEL) technology for unsurpassed image quality

  • Consistent color and even coverage across pages and substrates

  • Outstanding front-to-back registration

  • Minimize inconsistencies with the printer’s automatic calibration

Improve energy efficiency

ENERGY STAR® certified and EPEAT® Gold rated, the environmentally friendly Pro C9200/C9210 cutsheet printers take an intelligent approach to lowering environmental impact and total cost of ownership. Standard single-pass duplex scanning, chemical toner with a low melting point, and the programmable power on/off function all make reducing energy use automatic.

Amazing performance

Maintain excellent throughput with speeds of up to 135 ppm, print controller options, high data transfer rates and innovative technologies designed to maximize uptime and prevent unnecessary operator intervention.

Exceed the expectations of your most demanding customers with a digital press that prints on oversized and heavy substrates, synthetics and more.

More oversized media choices

The LANIER Pro C9200/C9210 offers oversized print options to better serve your needs, regardless of the size of their print run. Increase your value and enter new markets with the ability to offer:

  • Prints up to 13″ x 27.5″ on coated and uncoated stocks with optional feed unit

  • True trifold brochures

  • Book wraps

  • Packaging

  • Landscape brochures, folders and more

Use specialty media for more impact

With the ability to support media from 52 gsm to 470 gsm, an impressive range of choices are now available. Easily produce high-value output that makes a tactile impression — and a visual impact — on substrates including linen, synthetics, metallics, and clings. Air-assisted feeding ensures that stocks are fed cleanly through the printing path, reducing jams and frustrations.

Power personalization with variable data printing

Use variable data printing (VDP) to branch out into invoice or statement printing. This process improves response rates by personalizing college catalogs, retail catalogs, multi-channel marketing campaigns, direct mail, coupons and other materials. Present relevant information in dazzling color for maximum effect.

Store and manage media settings for consistent output

Reduce setup time and media waste. Achieve repeatable results quickly, and deliver consistent output. The system comes equipped with an intuitive paper library that allows you to select a stock directly from the panel while it automatically adjusts internal settings to produce precise output based on media type.

Easily identify media properties

Take the guesswork out of media setup. The Media Identification Unit displays paper size, stock type and other key details. It then automatically associates these media properties with the closest available match in the paper library to help you eliminate printing errors and more easily match customer supplied samples.

Deliver consistent, repeatable, stunning quality that’s comparable to offset.

VCSEL technology for exceptional image quality

LANIER’s revolutionary VCSEL (Vertical Cavity Surface Emitting Laser) laser beam technology emits 40 laser beams simultaneously, resulting in 1200 × 4800 dpi image resolution. This powerful printing technology minimizes color shift and raises the bar on print quality with crisp text, fine lines, and realistic image reproduction.

PxP-EQ Toner technology for superior color

LANIER’s proprietary PxP-EQ toner expands the color gamut by 10%, and spreads evenly while using a minimal amount of toner. This improves density and saturation, which results in brilliant color quality that has the impact you would expect from an offset printer. As an additional benefit, PXP-EQ requires a lower melting point, reducing energy consumption and associated operating costs.

Superior, accurate registration

New swing-and-shift technology reads a paper side edge instead of the leading edge to achieve registration accuracy with papers of varying sizes. Accurate mechanical front-to-back registration ensures the highest standard of quality for your longer runs of duplexed output. The Pro C9200/C9210 production printers also feature a color contact image sensor (CIS) to make sure print jobs on dark and colored media are delivered with the precise, high-quality registration.

Achieve consistent color and image density

To achieve success in high-volume print environments, the first print needs to be as vivid as the last. Advanced color management technologies continually monitor the system to reduce the chance of toner unevenness and ensure color stability on every page.

      • Active Toner Density Control analyzes the file being printed, and automatically determines the optimal amount of toner to deliver to the Developer Unit, at the precise moment it is needed.

      • Auto Image Feedback System employs embedded scanning sensors that automatically calibrate color gradations while in operation, making necessary adjustments to avoid any color discrepancies.

      • AC Transfer Technology for Textured Media: Alternating current (AC) technology and an elastic fusing belt enable toner to transfer and adhere to textured media more easily — whether on vellum, linen, or virtually any specialty texture.

Color Management Services

Our team of experts will help you identify and implement a color management strategy built around your goals. We will work with you and your staff on standards, processes and training to achieve optimal results.

Master your most demanding cutsheet workflows while driving higher productivity, volume and profitability in your printing operation.

Speed & Performance

With speeds of up to 115 ppm and 135 ppm, the Pro C9200/C9210 is built for high-volume work environments looking for a modern digital press. These dependable digital production systems deliver the speed, power and configuration options you need to keep jobs running with minimal user intervention, up to 1,000,000 impressions-per-month.

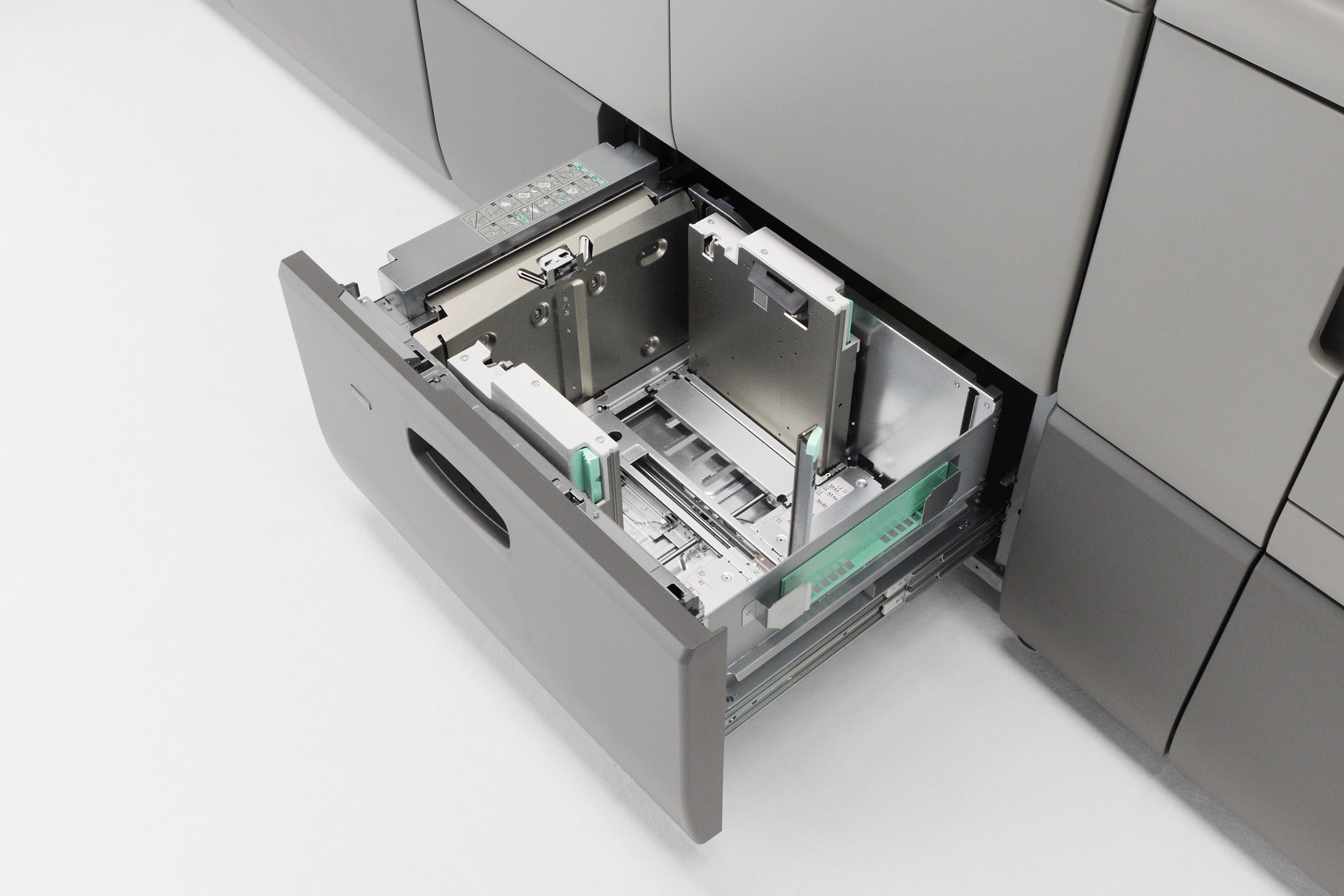

Paper Capacity

Bring on the long runs. With a standard capacity of 4,400 sheets and a maximum capacity of 18,100 sheets, the Pro C9200/C9210 cutsheet printers are designed to go the distance, minimizing interruptions required to replenish input trays.

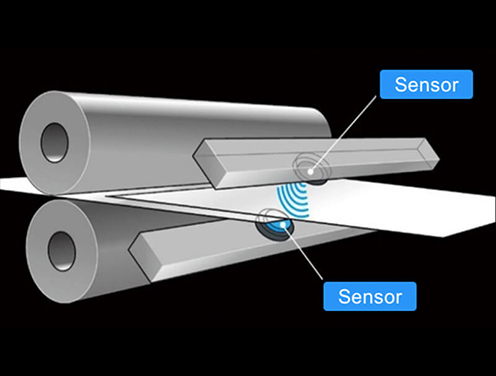

Double-feed Prevention

Sonar sensors within the Media Registration Unit are designed to detect a double-feed and ensure the paper runs correctly through the system. This capability improves your workflow with more flexibility to handle a wider variety of substrates.

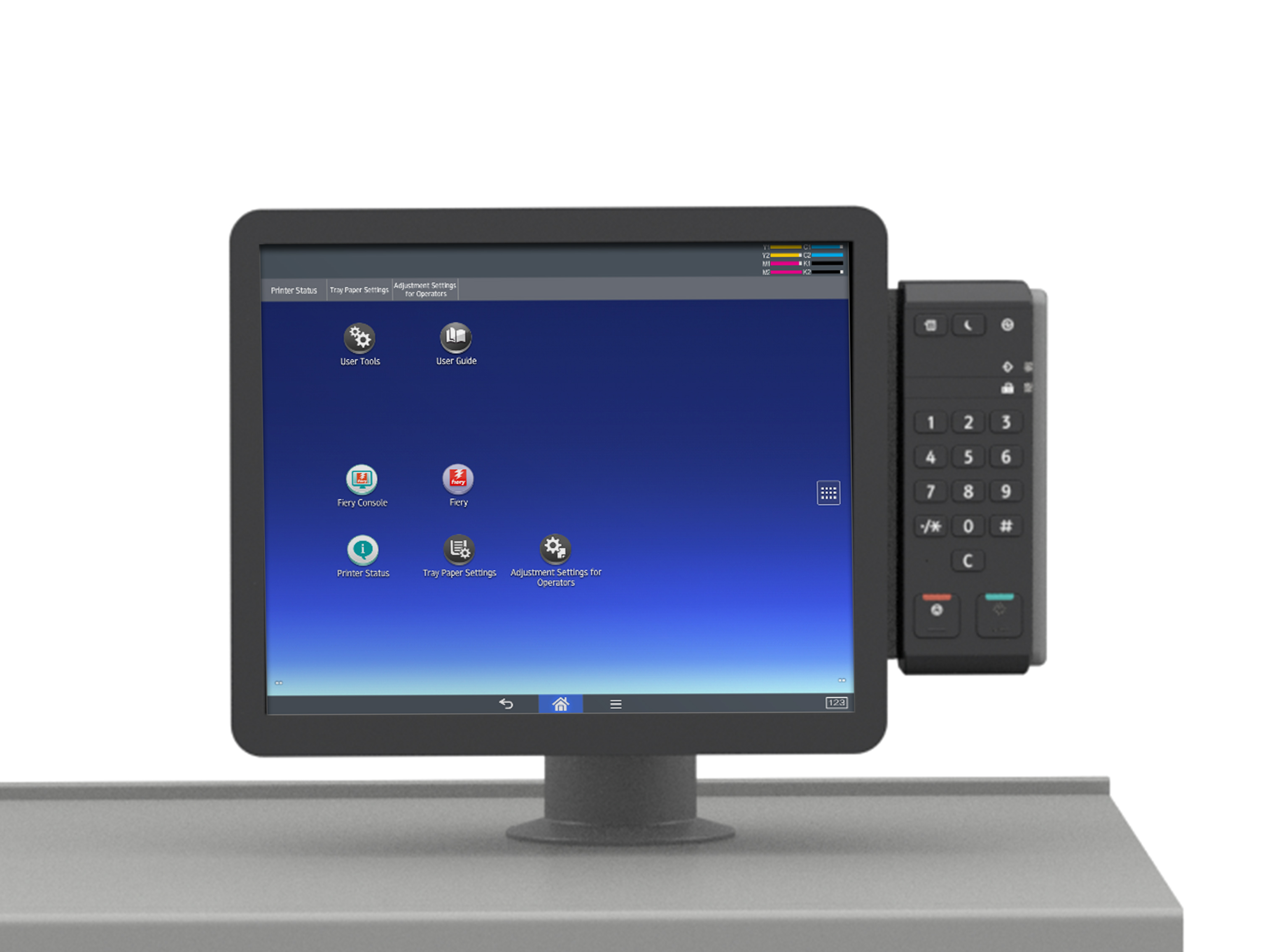

System Control Panel

View and manage the entire device configuration, operate the system remotely, and access the user manual online. The new 17″ color touch screen operation panel displays comprehensive information that operators can manipulate easily to stay on top of every job and every detail. Plus, it displays essential operator information such as paper names in trays, jobs in queue, and supply information, in easy-to-access areas.

Take control with colorful firepower

The Pro C9200/C9210 print controllers give you the power and precision to expedite even your largest, most complex jobs. Choose from LANIER TotalFlow Digital Front End R-62 or an EFI® Fiery® E-85 color controller with Fiery® FS300 Pro software and integrated Fiery® Integrated Workstation (NX Station). Add the LANIER TotalFlow Suite of software to automate and streamline tasks related to makeready, ticketing, scheduling, workflow creation, reporting and more.

Maximize system uptime and staff efficiency

Smart product design features help keep your printing workflows running smoothly.

Trained Customer Replaceable Units

Proactively protect uptime and reduce service calls with Ricoh’s Trained Customer Replaceable Units (TCRUs) program included with these systems. The program trains users to replace key components such as drums, rollers, fuser cleaning units and more, without requiring a service call.

Get end-to-end document production, in-house. Professional finishing solutions help maximize what you can produce with the LANIER Pro C9200/Pro C9210.

Booklet Makers

2,500-Sheet Booklet Finisher SR5060

Create saddle-stitched booklets up to 20 sheets with ease. Combine this impressive feature with an optional Trimmer Unit (TR5040) and Hole Punch Unit for specialty projects. The Booklet Finisher also includes a conveyor belt, pushing the finished product off the output tray and into a storage container, with minimal supervision.

Plockmatic PBM 350/500

A productivity-enhancing booklet making system that can be used inline or offline. Staple up to 35 sheets to create booklets up to 140 pages. Model is configurable with a Book Fold Module, Cover Feeder, Rotate Crease Trim, and Face Trimmer for utmost precision.

GBC StreamPunch Ultra

Create professional-quality documents for a wide media range with in-line printing, punching, and collating. Streamline workflow and dramatically reduce labor costs. This feature supports: Tab Punching, “Double Punch” Capability, Enhanced Line Speeds, Expanded Media Gamut, Variable Sheet Sizes, Adjustable Backage, and Die Set Detection.

Duplo 350Pro Booklet Maker

Offers a hands-free booklet-making process, eliminates touchpoints, and enables printed documents to be delivered one sheet at a time into the booklet maker without manual intervention. Unit includes: bridge (includes: interface & pump), touch screen PC, slitter/cutter/creaser module, booklet maker with 2 stitch heads, face trimmer, and square spine module.

CP Bourg Booklet Maker BM-e

CP Bourg’'s award winning booklet maker utilizes the latest technology with unparalleled quality and speed to produce on-demand booklets. The BM-e paper flow follows a stitch–fold–trim process with guaranteed set integrity, a maximum of 120 pages per booklet (30 sheets) and a maximum speed of 5,000 booklets per hour.

CP Bourg Watkiss PowerSquare™ 224

A unique and innovative complete book making system for digital and offset print applications. To suit different workflows, it is available in three configurations, online, nearline and offline.

Binders

Ring Binder RB5020

The RB5020 automates the creation of Ring Bind Booklets, saving both time and costs. Jobs can run continually, and rings for 50 or 100 sheets are available. An added feature allows for easy sheet addition or removal if customer edits are required after the booklets are finished.

Perfect Binder GB5010

Produce professionally trimmed, glue-bound, wrap around books of up to 200-sheets with covers and weights of up to 300 gsm. This inline option is ideal for catalogs, course books, small magazines, directories, and more.

Cover Interposers

Plockmatic High Capacity Interposer HCI3500

The Plockmatic High Capacity Interposer enables the automatic and inline insertion of a wide range of paper stocks up to 350 gsm within a single booklet. Vacuum feed technology ensures that thicker stocks are fed smoothly every time. Take advantage of two trays with 3,500-sheet total paper capacity and insert color covers and inserts in black and white runs.

Cover Interposer CI5030

The Cover Interposer CI5030 allows you to feed pre-printed covers and inserts into the finishing workflow more easily. Eliminate time-consuming offline manual insertion, reduce wear and tear on originals, and produce front and back covers with speed and efficiency.

Paper Handling

SR5000 Series Output Tray for Banner Sheet Type S6

Banner sheet output tray for either the SR5070 Finisher or SR5080 Booklet Finisher. Supports a stack of 200 sheets of paper up to 13" x 27.5" and paper weights up to 110 lb. Cover/300 g/m2.

Folders

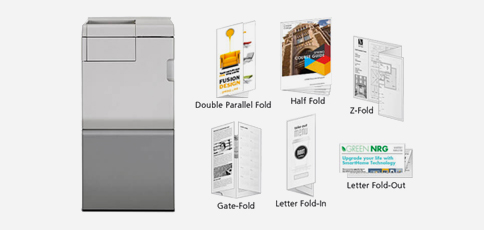

Multi-Folding Unit FD5020

Provides automatic inline document folding with the ability to deliver folded output in six different patterns; Half‑Fold, Letter Fold‑In (Tri‑Fold), Letter Fold-Out (Tri‑Fold), Gate-Fold, Double Parallel Fold (Four‑Fold) and Z‑Fold. The Multi-Folding Unit is ideal for finished documents such as newsletters, brochures, menus and marketing materials.

Print/Copy Process

4-drum dry electrostatic transfer system with internal transfer belt

Fusing

Oil-less belt fusing method

System Memory

E45: 2 GB x 4E85: 2 GB x 8

CPU

E-45: Intel i5-6500 (3.2 GHz up to 3.6 GHz with turbo)
E-85: Intel Xeon E5-2637 (3.5 GHz up to 3.7 GHz with turbo)

Interface

Windows® 10 Enterprise System x64

Control Panel

Full-Color SVGA Control Panel, 10.4″ LCD touch screen

Print Resolution

Up to 2400 x 4800 dpi VCSEL

Max Printable Area

12.7″ x 18.9″ (323 mm x 480 mm) – Standard
12.7″ x 27.2″ (323 mm x 692 mm) – When using Oversize Tray Option

Output Speed

Pro C9200 – 115 ppm (8.5″ x 11″) (FC/B&W)
Pro C9210 – 135 ppm (8.5″ x 11″) (FC/B&W)

Paper Capacity

Standard: 1st Tray: 2,200 sheets, 2nd Tray: 2,200 sheets
Optional Vacuum Feed LCT 3rd – 8th Trays: 2,200 sheets for each tray
Bypass Tray: 550 sheets

13″ x 19.2″ (Standard)
13″ x 27.5″ (Optional)

Paper Weight

1st to 8th trays: Vacuum Feed/Air Assist for 14 lb. Bond – 167 lb. Cover (52 – 450 g/m2)
Plain Paper, Coated Paper (gloss and matte), Recycled Paper, Preprinted, Letterhead, Pre-punched, Tab Stock (*2), OHP (transparency), Translucent Paper, Envelope, Textured Paper, Label Paper, Carbonless Paper
Oversize Tray 14 lb. Bond – 110 lb. Cover (52 -300 gsm)
Bypass Tray Unit: 14 lb. Bond – 80 lb. Cover (52 – 216 g/m2)
Duplex: 14 lb. Bond – 150 lb. Cover (52 – 450 g/m2)

Max Monthly Volume

1,000,000 pages per month

Duty Cycle

1,750,000 for workload spikes

Typical Electricity Consumption (TEC)

Pro C9210: 30.8 kWh/week
Pro C9200: 27.5 kWh/week

Maximum Power Consumption

Less than 9000 W

Power Requirements

208-240 V, Less than 60A (30A x 2), 50/60 Hz

Dimensions W x D x H

99.2″ x 39″ x 59″
Height: 73.6″ when including status pole

Weight

Less than 2,373 lb
